Freeman | SKU: PDX50C

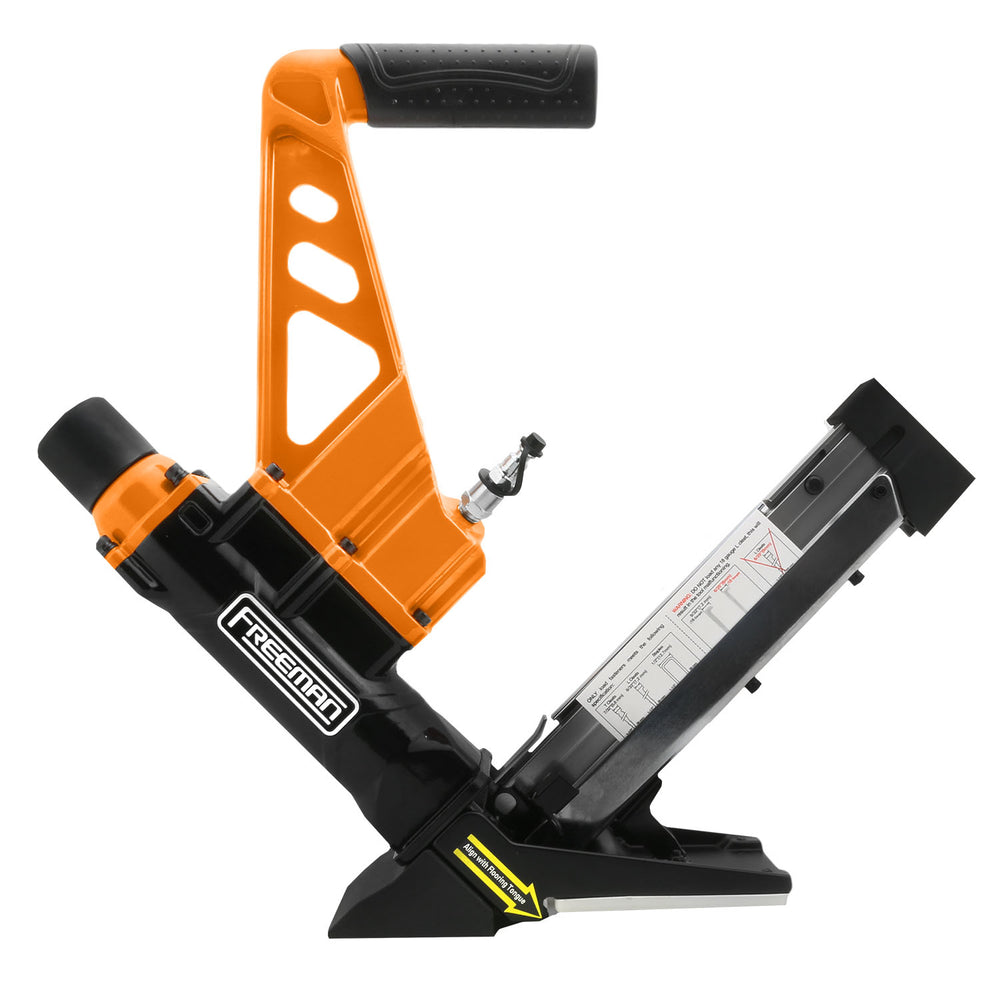

Lightweight Pneumatic 3-in-1 15.5-Gauge and 16-Gauge 2" Flooring Nailer / Stapler, PDX50C

Name: Lightweight Pneumatic 3-in-1 15.5-Gauge and 16-Gauge 2" Flooring Nailer / Stapler, PDX50C
Brand: Freeman
SKU: PDX50C
Price: 199.00 USD
Availability: InStock

$199.00

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.

Please select variant

Please enter name

Invalid email address

SMS

We respect your privacy and don't share your email with anybody.

Manuals, Parts and Warranty

Replacement Part Diagram

Use and Care Manual

The Freeman PDX50C Lightweight Pneumatic 3-in-1 15.5 Gauge and 16-Gauge 2" Flooring Nailer / Stapler is designed for efficient, professional installation of tongue and groove hardwood flooring.

Featuring a 3-in-1 multi-purpose magazine, this tool lets you nail or staple with one device, saving time, money, and space. It’s 20% lighter than comparable models, reducing fatigue during extended use without sacrificing durability.

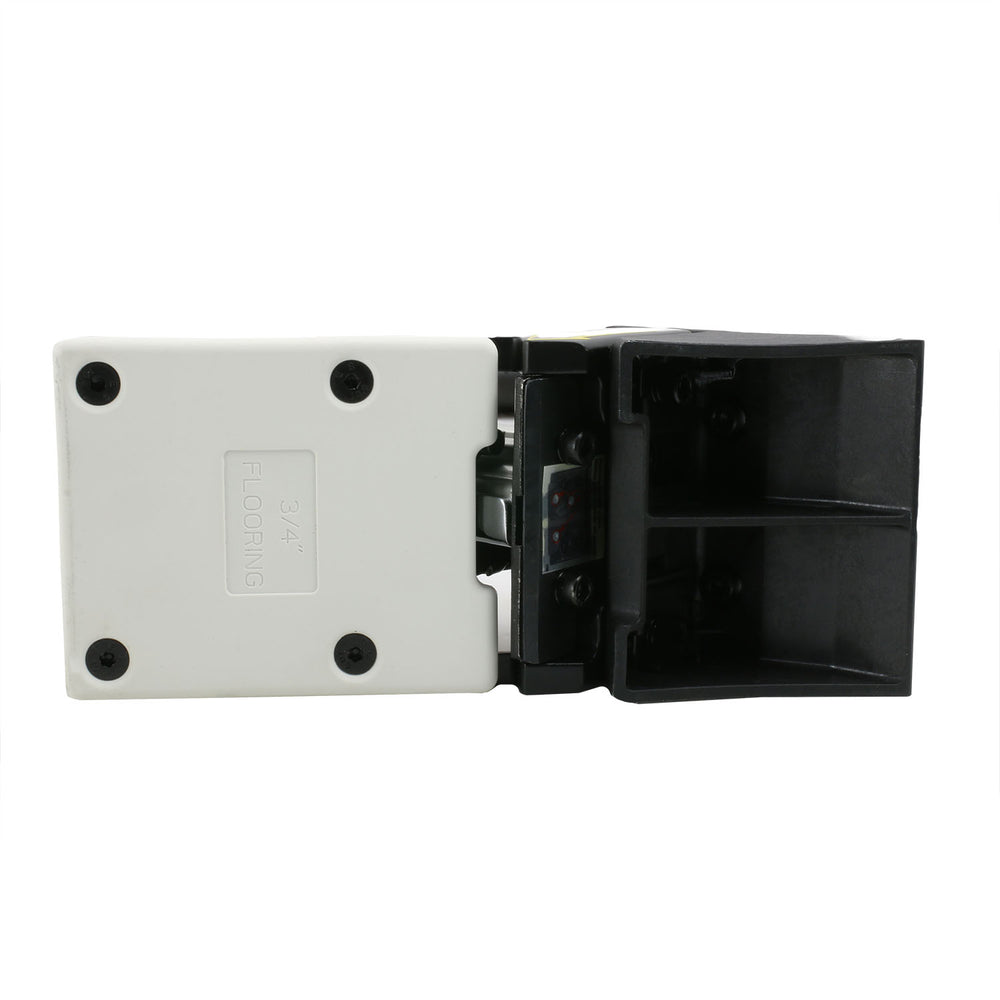

This 3-in-1 15.5 GA and 16 GA 2" Flooring Nailer / Stapler includes two interchangeable no-mar base plates to protect finished flooring, and a long reach fiberglass mallet with padded grip for added control and comfort. Perfect for DIYers and professional contractors, the PDX50C is backed by Freeman’s 7 Year Limited Warranty and 90 Day Wearable Parts Warranty.

BMC or Bag

No

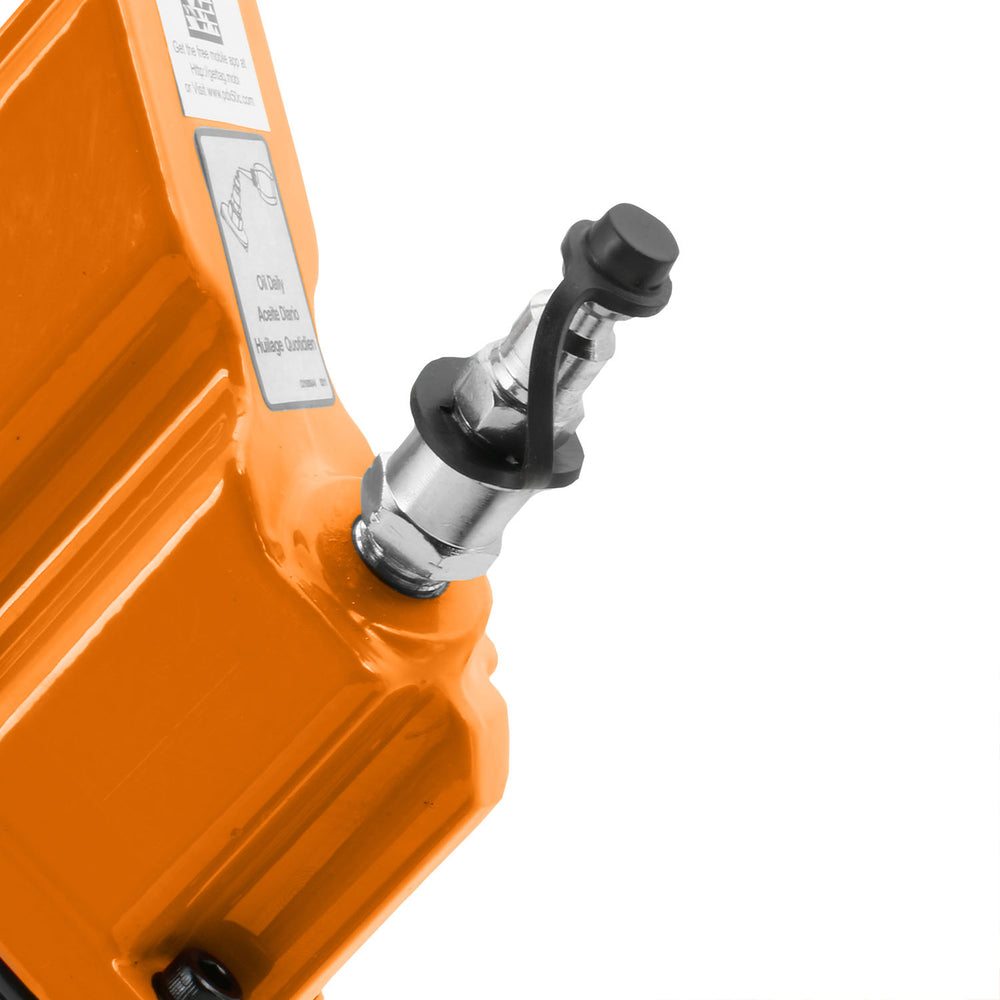

Fitting Size

1/4" NPT Industrial
Fitting Included

Yes
Magazine Capacity

T and L cleats: 100 pcs; Staples: 120 pcs
Min. Recommended SCFM @ 90 PSI

2.2
Operating PSI

70 – 115 PSI
Pneumatic Tool Category

Flooring Nailer
Parts Compatibility

RPDX50; RPDX50D; RPDX50M; RPDX50NP; RPDX50.5BP; RPDX50.75BP
Material

High strength and lightweight aluminum body; Anodized aluminum magazine; Heat treated steel parts
Battery Type

/
Maximum Fastener Size

2"
Minimum Fastener Size

1-1/2" – 2" L for all three types of fasteners
Fastener Gauge

16 Gauge; 15.5 Gauge
Fastener Type

16 gauge glue collated T-cleats; 16 gauge glue collated L-cleats; 15.5 gauge glue collated 1/2" crown staples
Power

Pneumatic
Includes

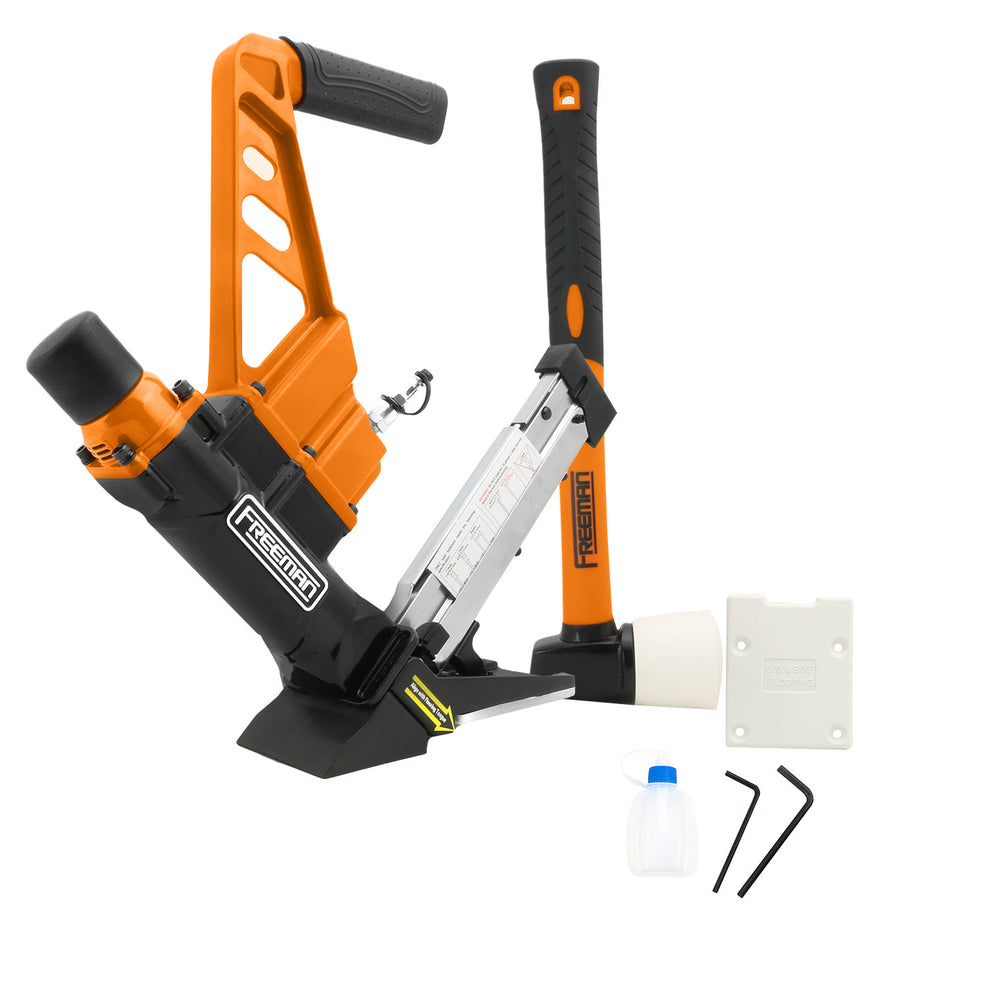

Long reach fiberglass mallet with padded grip; (2) interchangeable no mar base plates
Applications

Designed for the installation of 1/2" to 3/4" solid tongue and groove hardwood flooring
Manufacturer Warranty

7 Years
Belt Hook Included

/

Quality Nailer

Works with T-Cleats, L-Cleats and Staples. Never missed a beat while laying 200 sq ft of hardwood flooring.

Looks well made.

Did not use it yet. The job I had need a 18 gauge nail that will work in the unit. Looking forward to using it on my next job. Should be easier that my old manual one.

You won't go wrong

Amazing. Put in over 800 staples without a jam on engineered hardwood. Super solid and well made. Easy to set up.

Flooring Nailer

Very reliable tool

Excellent Customer Service

Upon opening the box it was apparent that the company is big on instructions. Included was the user manual, a quick instruction booklet, sample fasteners, and tools necessary for disassembly/reassembly. Very impressive. A nice mallet was included as well.However, the Bostitch staples, which matched the sample staple exactly and were the exact ones recommended by customer service, did not fit into the loading slot all the way, due apparently to a manufacturing issue. I disassembled the base and found a small piece of cardboard lodged in the area where the staples are ejected. However, after reassembly, the staples still did not feed properly.Customer service was excellent, though, and did their best to evaluate whether there were any issues with loading the fasteners or operation.Once it was determined that the condition could not be rectified, a replacement was sent and I received it A DAY LATER! This was prior to sending back the original. The replacement works very well.While I was disappointed with a malfunctioning unit I am very impressed with how the Company functions and recommend this product highly.

600 feet of flooring no jams

For 3/8 flooring you will need to buy a 3/8 shoe. The 1/2 inch plate does not work well

It is doing the job well.

I am a few thousand nails in, and this thing is working like a charm!

parfait

installation de 400 pi2 sans probl√®mes.

Perfect

works very well. installed 600 square fit without one misfire.

it works like it said it would

First time using this nailer, I am on about 1500 nails so far and had one jam. The only problem I had is that it will slide off the edge and put the nail in the middle of the board so you have to watch it . Other than that I would buy again . Very good product, shiping was fast, well worth the price
